Johnson Pump CM10P7-1 - 12V Circulation Pump - 10-24486-03
Manufacturer Part #: 10-24486-03
Couldn't load pickup availability

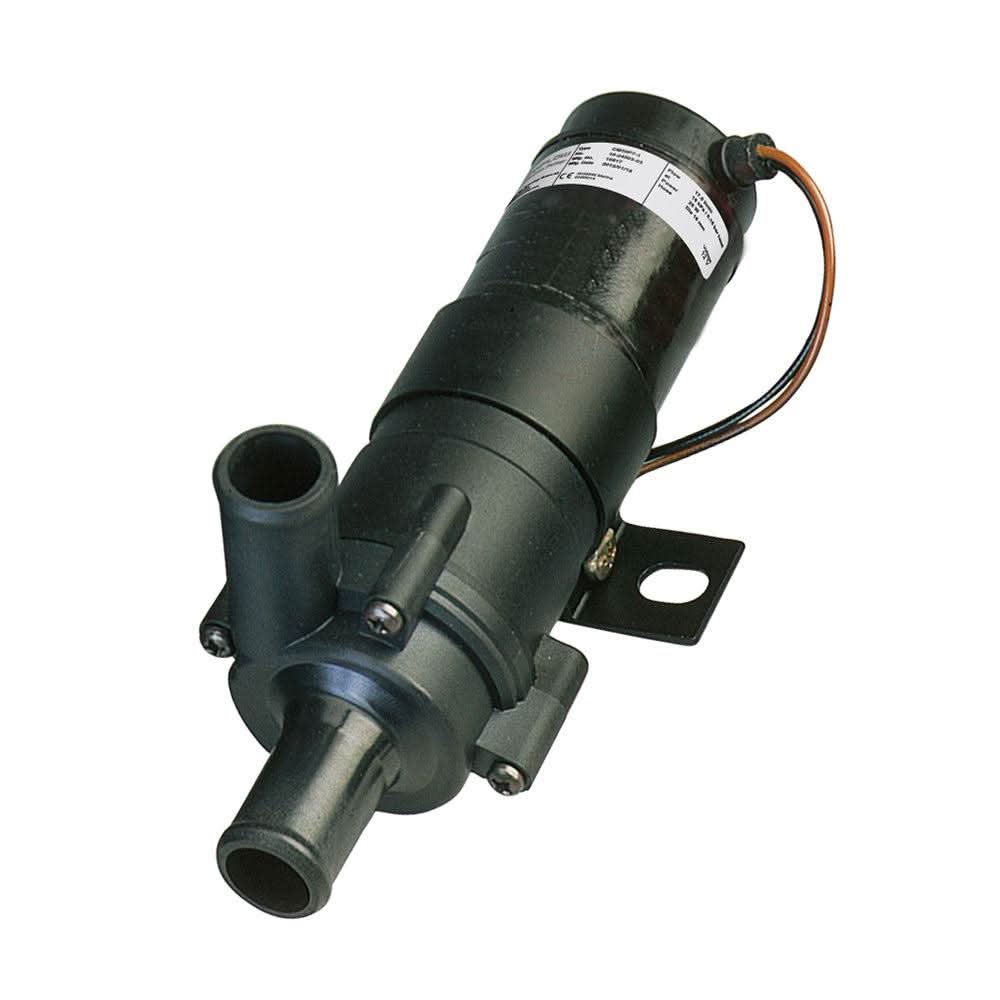

Johnson Pump CM10P7-1 12V Circulation Pump – 10-24486-03
The Johnson Pump CM10P7-1 Circulation Pump (10-24486-03) is a high-quality, 12-volt DC water circulation pump designed for efficient fluid movement in marine, RV, and auxiliary systems. Engineered for reliable performance and quiet operation, this compact pump provides steady flow to support cooling circuits, livewell recirculation, freshwater systems, and general water transfer tasks on boats, yachts, and mobile applications.
Constructed with corrosion-resistant materials and a rugged motor assembly, the CM10P7-1 is built for longevity in harsh environments. Its compact footprint and simple electrical connection make it easy to install in tight spaces, while the pump’s self-priming capability and consistent flow rate ensure dependable performance under varying load conditions.
Whether used for livewell water circulation, freshwater system support, or auxiliary cooling duties, the Johnson Pump CM10P7-1 delivers efficient, low-maintenance operation you can count on out on the water.
Key Performance Features
-
Magnetic Drive Technology: The motor and pump are magnetically coupled, creating a leak-proof design that eliminates the need for a traditional shaft seal. This significantly reduces maintenance and prevents leaks.
-
Continuous Duty Motor: Equipped with a permanent magnet, ball-bearing motor rated for up to 5,000 hours of uninterrupted service. It is built to handle voltage fluctuations of ±20%.
-
High Efficiency: Provides a steady flow rate of 4.0 GPM (15 L/min) while maintaining very low electrical consumption (Max 14W), making it ideal for battery-powered systems.
-
Liquid Versatility: Safe for use with fresh water, salt water, and ethylene glycol mixtures (up to 60% glycol). It can handle extreme liquid temperatures ranging from -40°F to 212°F.
-
Safety & Durability: The unit is ISO 8846 ignition protected, meaning it can be safely installed in engine compartments. It is also designed to withstand dry running for up to 30 minutes without damage.
Technical Specifications
-
Brand: Johnson Pump
-
Model: CM10P7-1
-
Part Number: 10-24486-03
-
Voltage: 12 VDC
-
Pump Type: Circulation / auxiliary water pump
-
Flow Rate: Approximately (flow depends on system head) – designed for continuous circulation
-
Self-Priming: Yes
-
Application: Marine freshwater systems, livewell circulation, auxiliary water transfer
-
Environment: Marine and RV
(Exact flow curves and head performance can vary based on system configuration.)
Benefits
-
Keeps freshwater and livewell water moving for better system performance
-
Reduces hot spots in cooling and recirculation systems
-
Enhances comfort and reliability of onboard water systems
-
Easy to retrofit into existing 12V installations
Applications
-
Marine freshwater systems
-
Livewell water circulation
-
Auxiliary circulation systems
-
Engine cooling circuits (when specified)
-
RV water systems
Installation & Maintenance
This is a normal-priming centrifugal pump, which means it is not self-priming. It must be mounted in a position where it is always flooded (below the water level of the source) or be manually primed before use. This model includes a flexible cord for easier wiring integration.
Pro Tip: While the pump can handle some dry running, its lifespan is maximized when kept flooded. It should not be used with soiled water containing hard particles, as these can damage the magnetic drive.
Comparison: CM10 vs. CM30
If you need more power, the CM30P7-1 is the larger sibling to this pump, offering a higher flow rate of approximately 5.3 GPM to 6.9 GPM depending on the port size.
Manufacturer : Johnson Pump
Manufacturer Part No : 10-24486-03
Johnson Pump CM10P7-1 - 12V Circulation Pump - 10-24486-03 is backordered and will ship as soon as it is back in stock.
