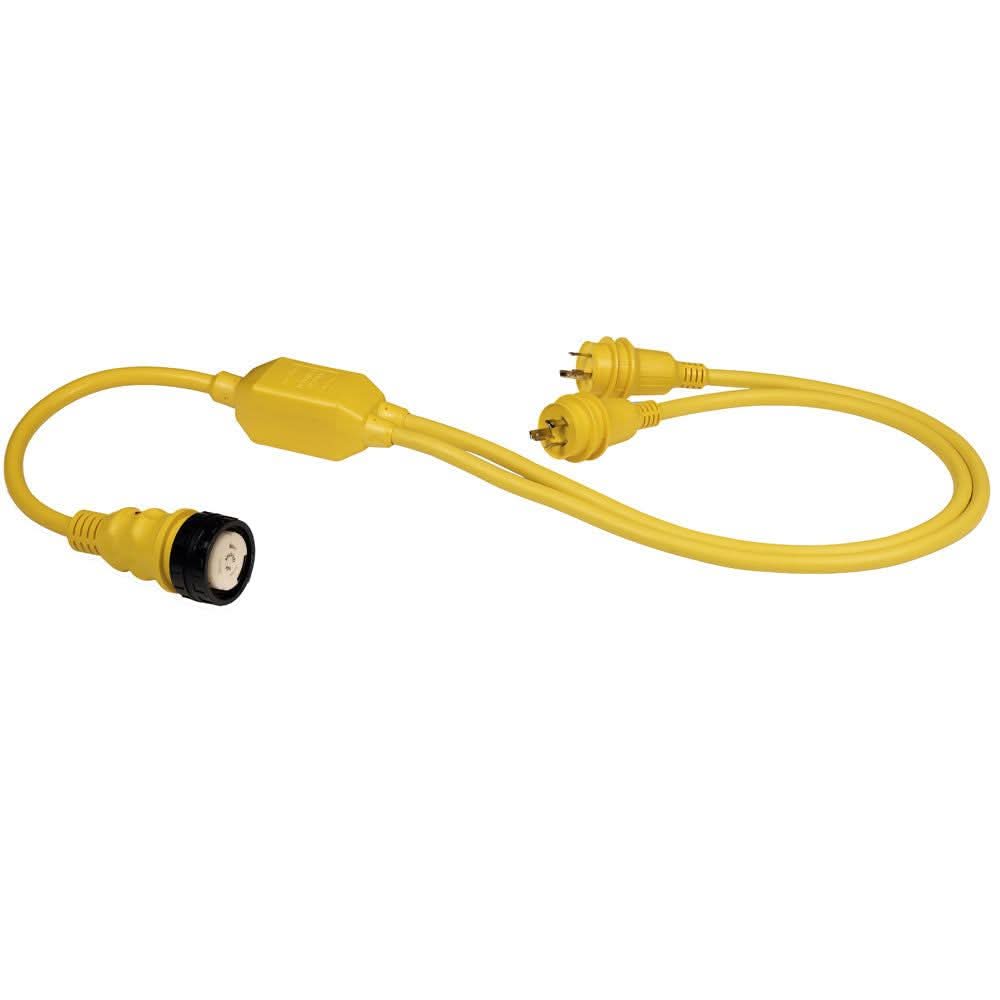

Marinco RY504-2-30 50A Female to 2-30A Male Reverse "Y" Cable - RY504-2-30

Marinco RY504-2-30 50A Female to 2-30A Male Reverse Y Cable - RY504-2-30

Reverse Y Adapter

The Reverse Y Adapter has two male plugs with special power isolation circuitry for added safety. When one plug is connected to a receptacle, the circuitry isolates the second plug. The reverse Y provides 50A 125/250V power when only two 30A 125V receptacles are available.
Note: Reverse Y will NOT work with 50A, 125V, 3-wire inlets. Power is provided in both circuits to the 4-wire inlet, but the dock side receptacles limit the current in each circuit to 30A. The two 30A 125V receptacles must be supplied from a single power source providing from 208V to 250V between them for proper operation.

Boat Side: Female Connector

• 50A 125/250V

• with Sealing Collar System

• Attaches to boat inlet or cordset

Dock Side: Male Plug

• 2-30A 125V

• Locking

• Attaches to dockside receptacle or cordset
