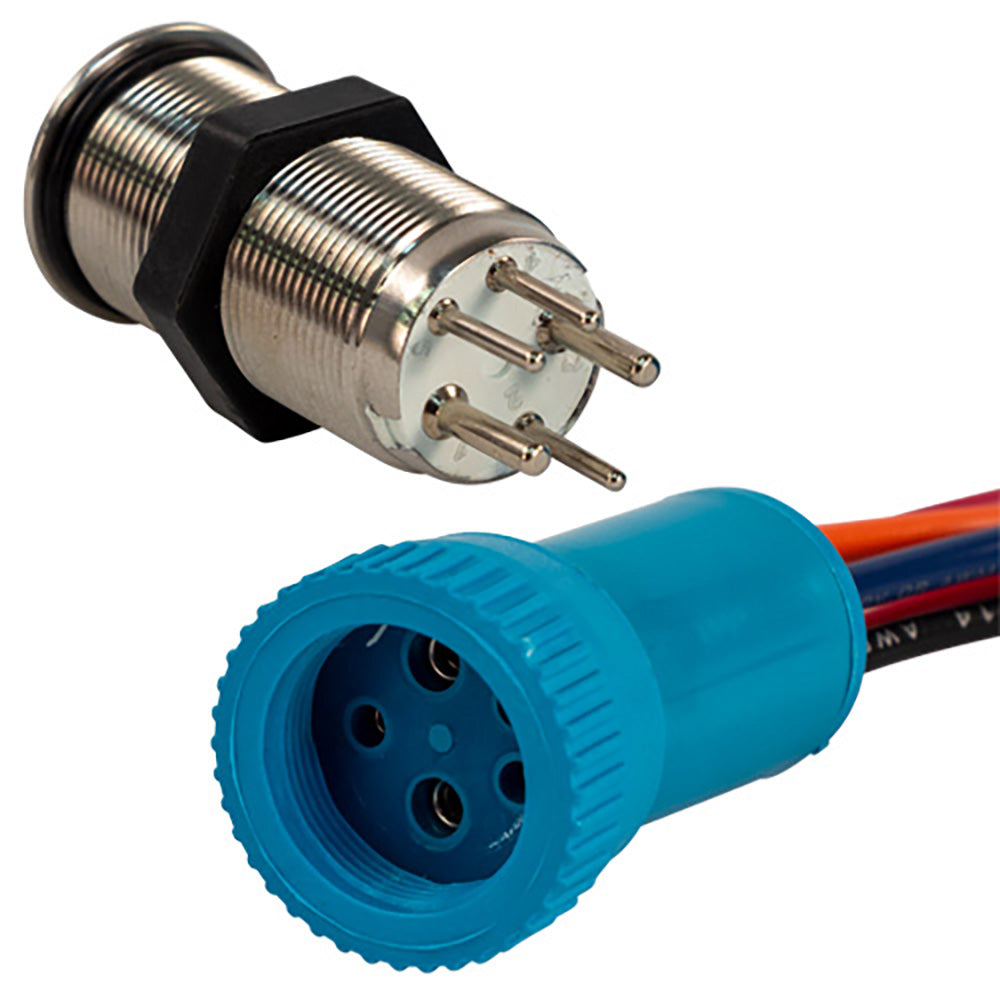

Bluewater 19mm Push Button Switch - Off/(On) Momentary Contact - Blue/Red LED - 4' Lead - 9057-2113-4

19mm Push Button Switch - Off/(On) Momentary Contact - Blue/Red LED - 4' Lead

This stainless-steel plated metal button can transform any dash by adding a touch of modern flair. This button has an “Off/(On)" momentary contact.

The body design combined with the included gasket gives this button switch a waterproof rating of IP69K. At night, every switch is backlit with blue LED light for unparalleled visibility. That light changes to red to let users know that the function is on without question.

Features:

• 4ft. lead

Specifications:

• Function: Off-(On) (momentary contact)
• Off/On: Blue/red
• Rear Mark Page: Green dot
• Switch Rating: 15A/12 – 24VDC
• Material: Stainless steel
• Mechanical Life: 50,000 cycles
• Electrical Life: 10,000 cycles

Installation:

Drill a 19mm hole into any material up to 6mm thick. Connect the 3 contacts for the button (color-coded for safety and convenience). Lastly, connect the 2 contacts for the LED.
