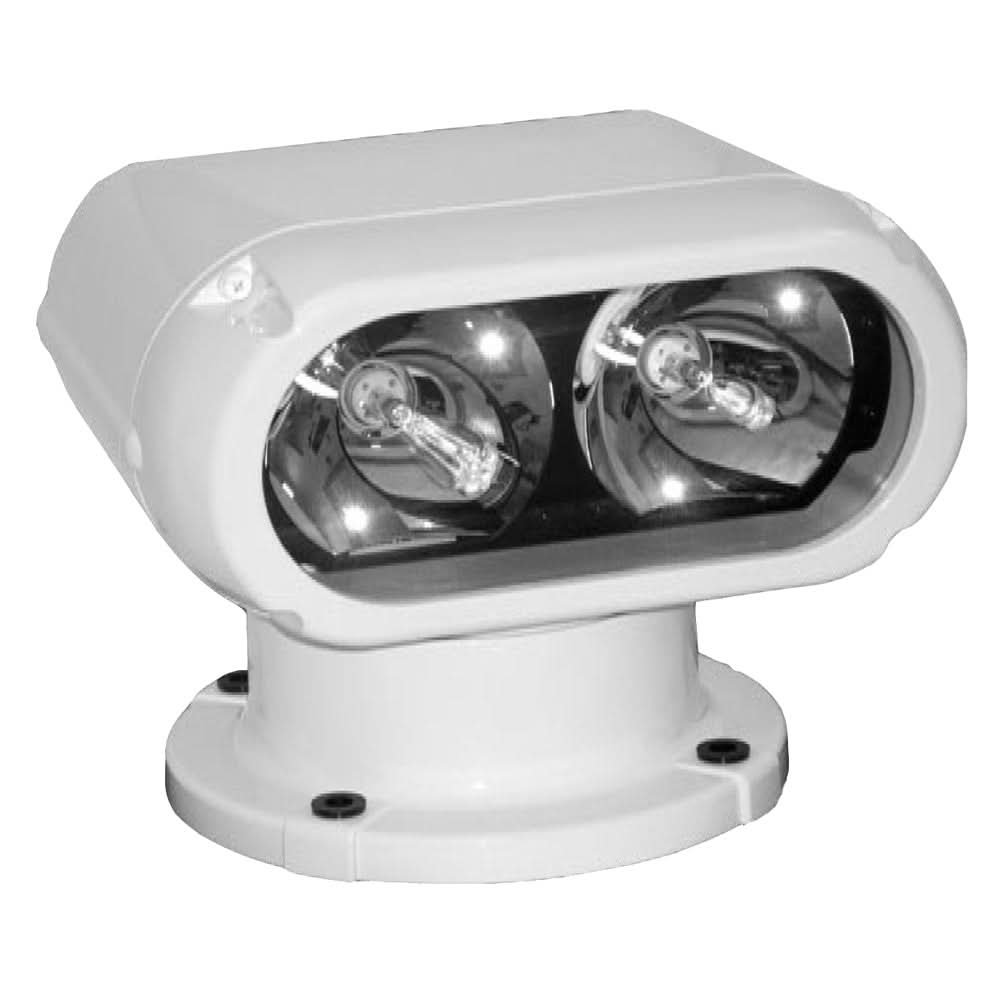

ACR RCL-300 Remote Controlled Searchlight - 12V/24V - 1933

ACR RCL-300 Remote Controlled Searchlight - 12V/24V - 1933

RCL-300 Remote Controlled Searchlight - 12V/24V

12v - 24v 1 million* CD
Remote Controlled Searchlight

Internal elevation mechanism provides pitch control of spotlight beam; protects elevation mechanism from weather

Includes fingertip remote control Point Pad™; up to three remote Point Pad™ units may be installed on system; surface/flush mount options included

Rugged triple-primed and sealed, marine grade aluminum housing

Exclusive XRCiZ™ feature rotates and moves light assembly every 30 days from activation to keep all bearing surfaces free of corrosion and all electrical contacts functional

Auto return function that returns light to forward position when powered down

Salt water-resistant construction with nylon and phenolic washers, aluminized stainless steel screws with insulating lubricant

Wiring harness included

*Twin 35w, metal halide HID lamps provide over 500k CD each and 1 million effective CD when combined

Size: 12 inch x 13 inch x 9.3 inch (31 x 33 x 23.5 cm)
Weight: 36lbs (16.39 kg)
Material: Marine grade cast aluminum, tempered glass
Input Voltage: 12V-24VDC
Amp Draw Startup 25A @12V, Running 8A @ 12V
Color: White
Operation: Remote controlled Point Pad™
Beam Angle: 6°
Elevation Angle: 15° up, 30° down
Rotation: 360° continuous
Rotation Speed: Fast 30° per second Slow 10° per second
Elevation Speed: 3° per second
Lamp: Twin 35W metal halide lamps 1,000 hours operating life
Accessories:
Secondary Point Pad™ for remote control with install kit (P/N 9282.3)
Replacement 35W Halide lamps (P/N 6009)
Footprint Diameter:9 inch (23cm)
Limited Warranty: 1 Year
Carton Dimensions:20.5 inch x 14.25 inch x 19.25 inch
Carton Weight: 40 lbs
Product : ACR RCL-300 SEARCHLIGHT 12/24V
Manufacturer : ACR ELECTRONICS
Manufacturer Part No : 1933
UPC : 791659019337
