ACR RCL-600A Remote Controlled Searchlight with Joystick Panel - 1941

ACR RCL-600A Remote Controlled Searchlight with Joystick Panel - 1941

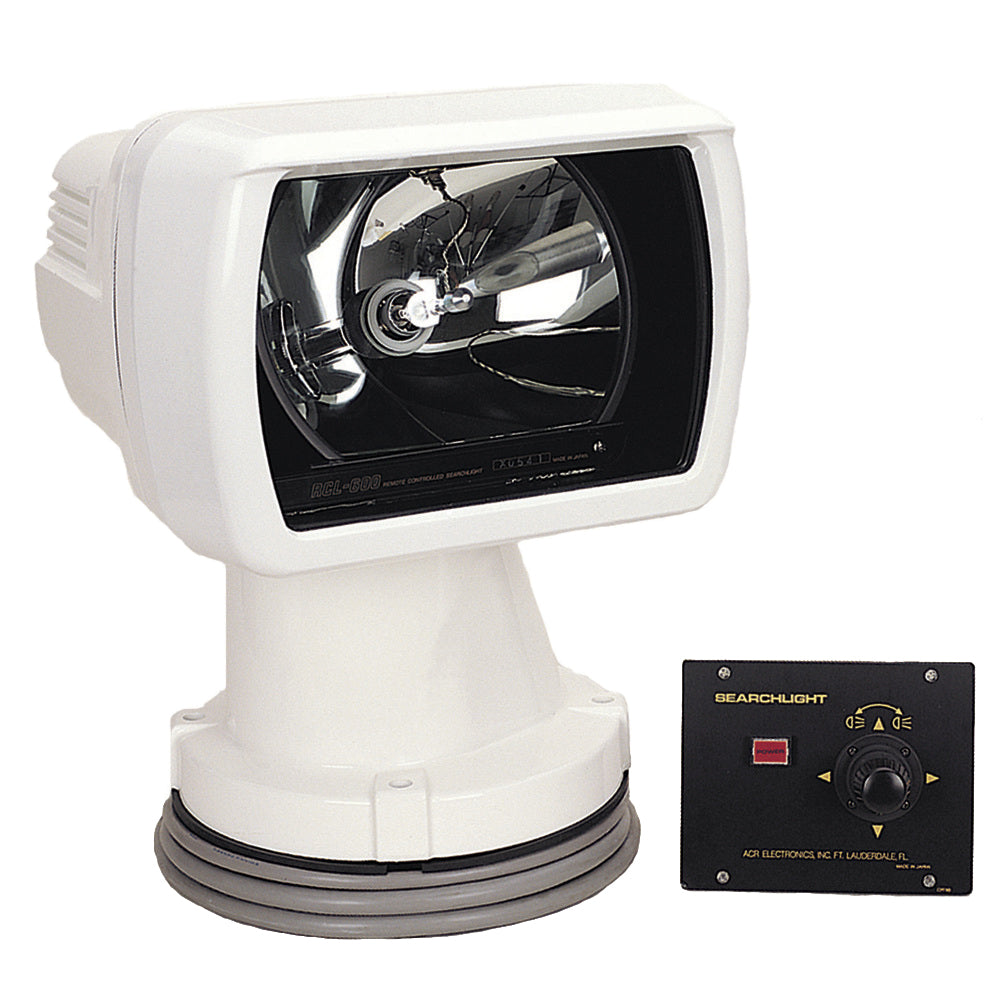

RCL-600A Remote Controlled Searchlight with Joystick Panel

At 6 million candela, the top-of-the-line RCL-600A pierces the darkest night. Its high-intensity 150-watt Xenon bulb and parabolic reflector provides brawny power for commercial vessels, yet its aesthetic design meets all the requirements of large pleasure yachts. Switch easily from flood to spot, and aim precisely with the self-contained remote joystick.

• Aesthetically designed to meet performance requirements of large pleasure yachts
• Internal elevation mechanism provides pitch control of spotlight while protecting elevation mechanism from weather
• Xenon lamp and parabolic reflector provide hyper-intense 6,000,000 candela spotlight beam
• Housing rotates a full 360 degrees allowing all-around illumination capability
• Auto return brings light back to a pre-set position
• Focus adjustment gives spot or flood capability
• Nylon shoulder washers insulate base plate when mounting, eliminating galvanic reaction of dissimilar metals
• Includes control panel with self-contained joystick remote
• Rugged weatherproof enclosure for years of reliable service

Specifications:

• Size: 17" x 14" x 15"  (43.2 x 35.6 x 38.1 cm)
• Weight: 65.0 lbs  (29.5 kg)
• Material: Aluminum
• Color: White
• Operation: Remote joystick control
• Beam Spread: Variable; can be narrowed or broadened
• Elevation Angle: 18° up, 30° down
• Rotation: 360° continuous
• Rotation Speed: Fast 27° per second,slow 11° per second
• Elevation Speed: 7.5° per second
• Lamp: High intensity 150W Xenon
• Accessories: Secondary remote joystick (P/N 1942)12V or 24V Replacement bulb (P/N6007)
• Footprint Diameter: 11.5” (292.1 mm)
• Limited Warranty: 1 Year

Product : ACR RCL-600A SEARCHLIGHT with JOYSTICK PANEL D/S ONLY
Manufacturer : ACR ELECTRONICS
Manufacturer Part No : 1941
UPC : 791659019412
