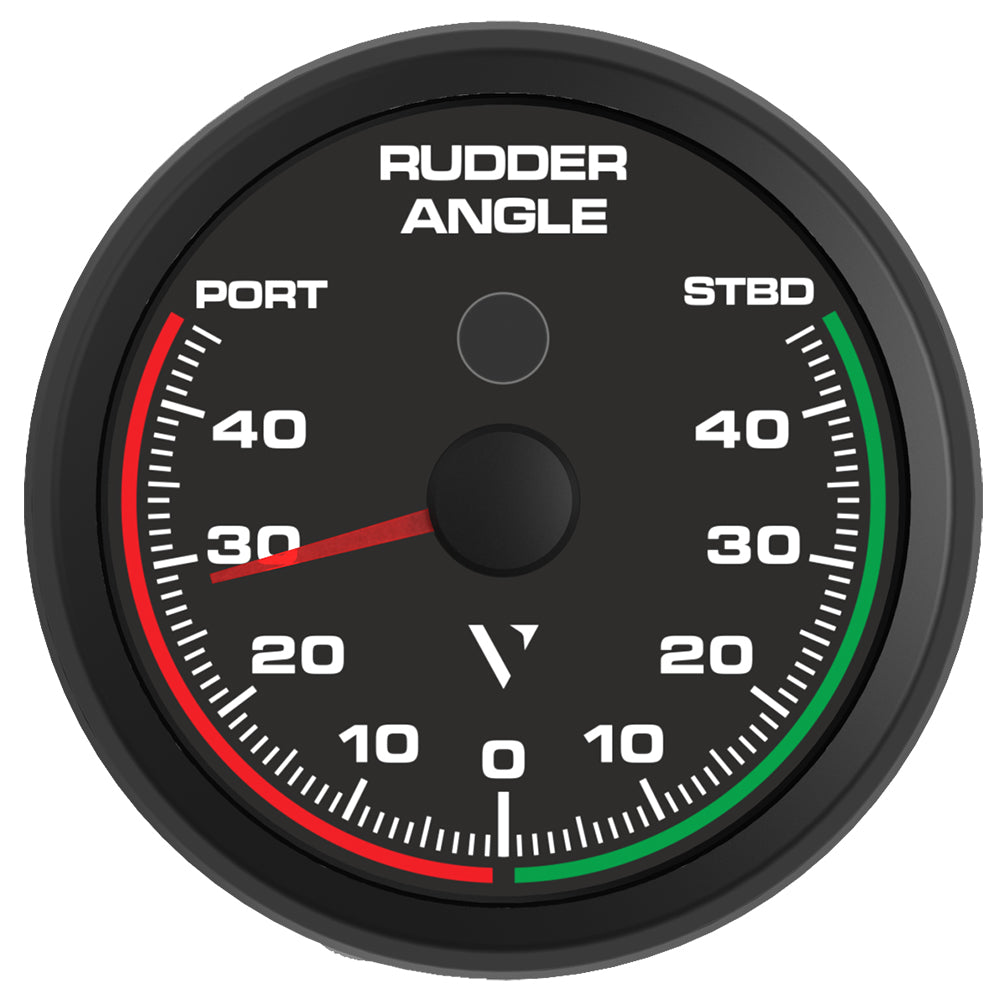

Professional 85MM (3-3/8") Rudder Angle Indicator for NMEA 0183

Specially designed to fit into the standard 85mm panel cut, the Professional Rudder Angle Indicator is developed to suit commercial applications thanks to the embedded NMEA 0183 transceiver - which makes it operable with most of the professional autopilots out in the field - and the large 270° dial scale and Red illumination which makes it well readable and accurate in the indication.

It supports both 12V and 24V systems, and it is designed to resist the harshest environment thanks to its extended operating temperature from -30°C to +80°C and IPX7 protection class.

Able to support the analogue 3-180 Ohm and 0-5V rudder sensors, the Professional Rudder Angle Indicator also repeats the rudder angle data via NMEA 0183 to multiple gauges connected in series to it.

The embedded infrared (IR) pushbutton allows for a user-friendly fine tuning of the predefined calibration.

Features:

• Designed for NMEA 0183
• Easy programing and installation

Technical Specifications:

• Operating Voltage - 8 to 32 V
• Protection Class - IP6K7
• Illumination - Red LED
• Dial - Black with graphics
• Pointer - Red Illuminated
• Lens - Plastic Double Lens (anti-reflective)
• Operating Temp. - -40°C to 115°C
• Connector - Molex MX150 - 12 pin

In the Box:

• Gauge

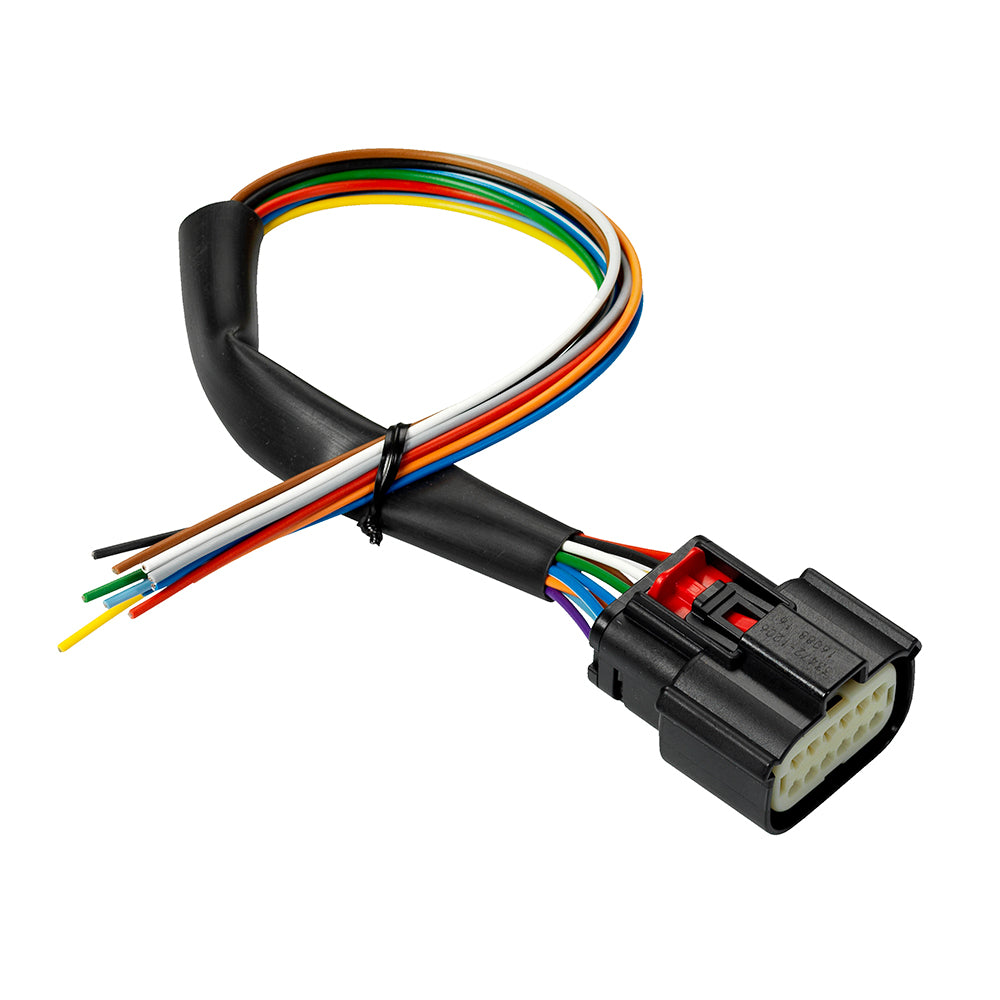

• Wire Harness

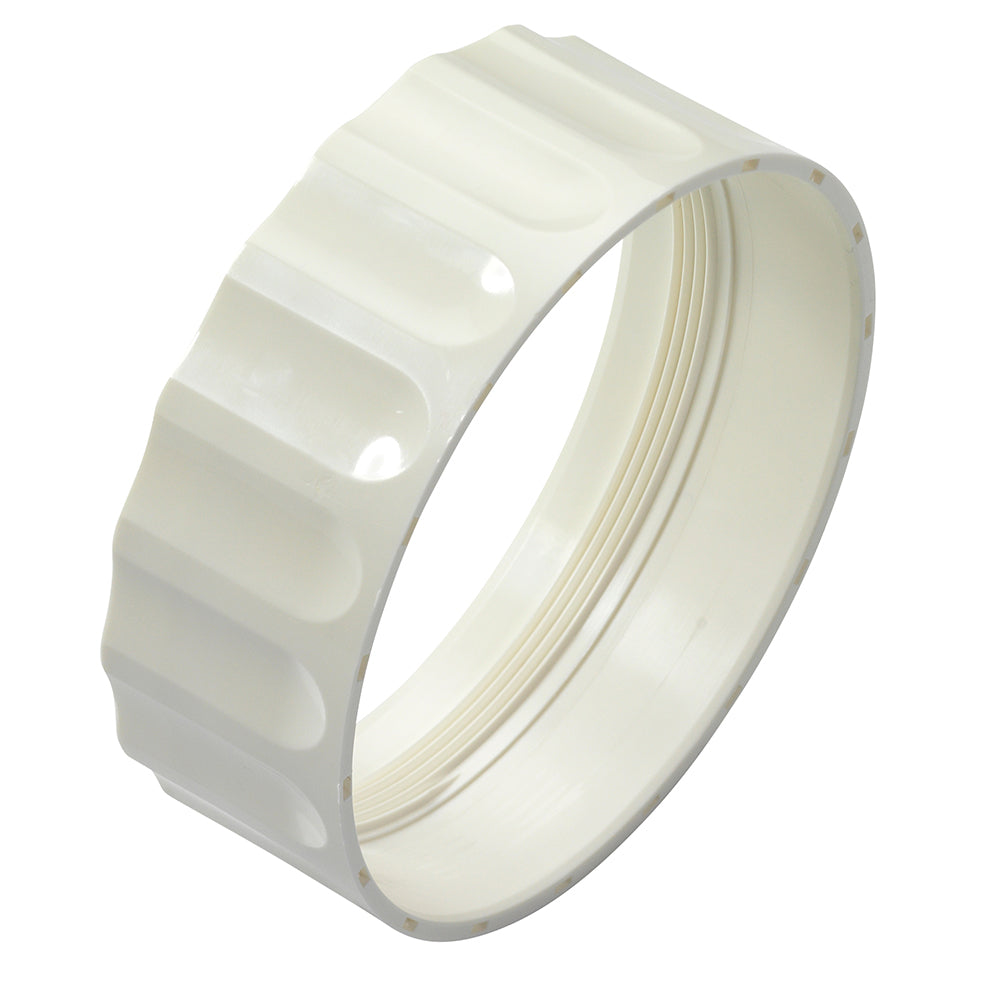

• Mounting Spinlock
• Safety Instructions

*Sold as an Individual

Product : VERATRON 85MM (3-3/8") OCEANLINK RUDDER ANGLE IND
Manufacturer : Veratron
Manufacturer Part No : B00067401
Product : VERATRON 85MM (3-3/8") OCEANLINK RUDDER ANGLE IND
