Wichard Thimble Shackle - Captive Pin - Diameter 10mm - 13/32" - 1495

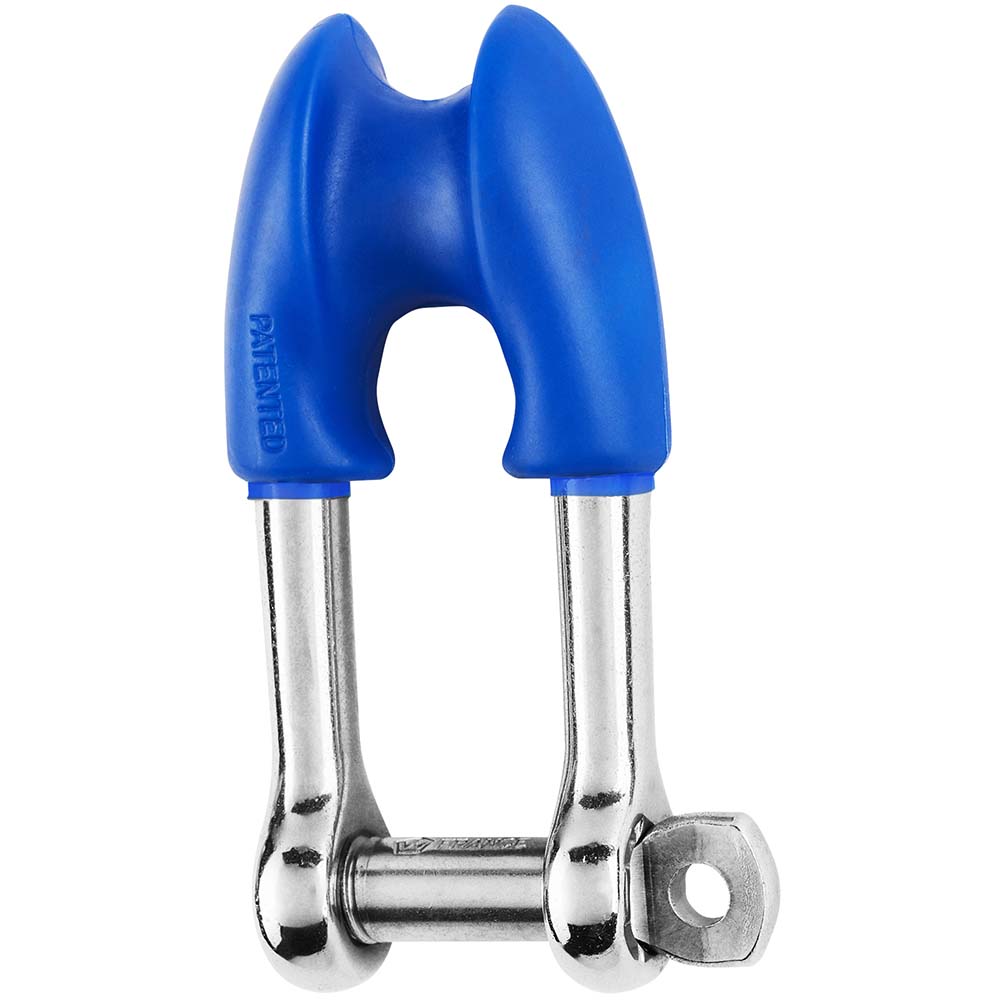

Thimble Shackle - Captive Pin - Diameter 10mm - 13/32"

Features:

• Thimble shackle with captive pin forged in grade 316L stainless steel
• Allows to spliced a rope without adding an additional thimble
• With the captive pin, no risk to lose the pin
• Outstanding working and breaking loads

Applications:

• Mainsheet halyards
• Max rope size: 16 mm

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 3350
• Breaking load (lb) 11020
• Weight (lb) 0.322

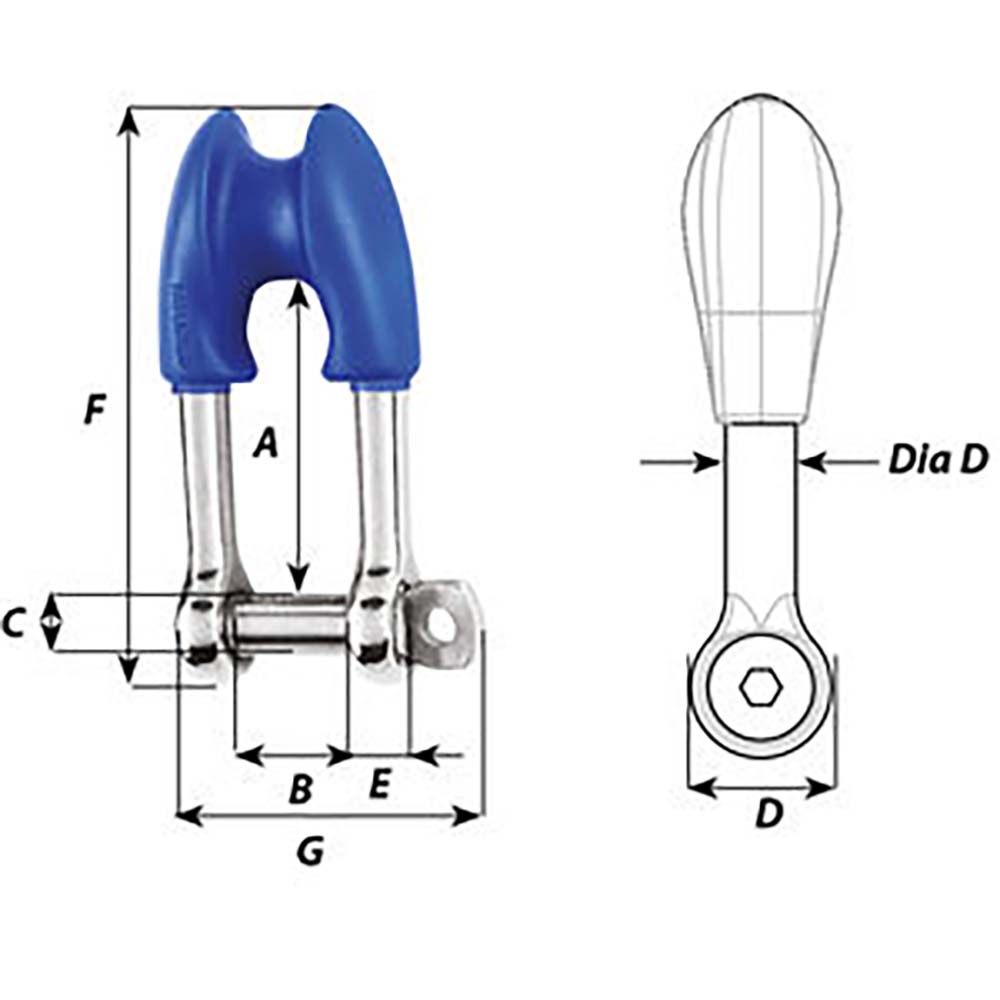

Dimensions (see 2nd image):

• A (inch) 2-1/64"
• B (inch) 25/32"
• C (inch) 25/64"
• D (inch) 25/32"
• D diameter (inch) 25/64"
• E (inch) 23/64"
• F (inch) 3-47/64"
• G (inch) 2-1/8"
