Jabsco Electric Marine Toilet - Regular Bowl w/Soft Close Lid - 24V - 37010-4194
Manufacturer Part #: 37010-4194
Couldn't load pickup availability

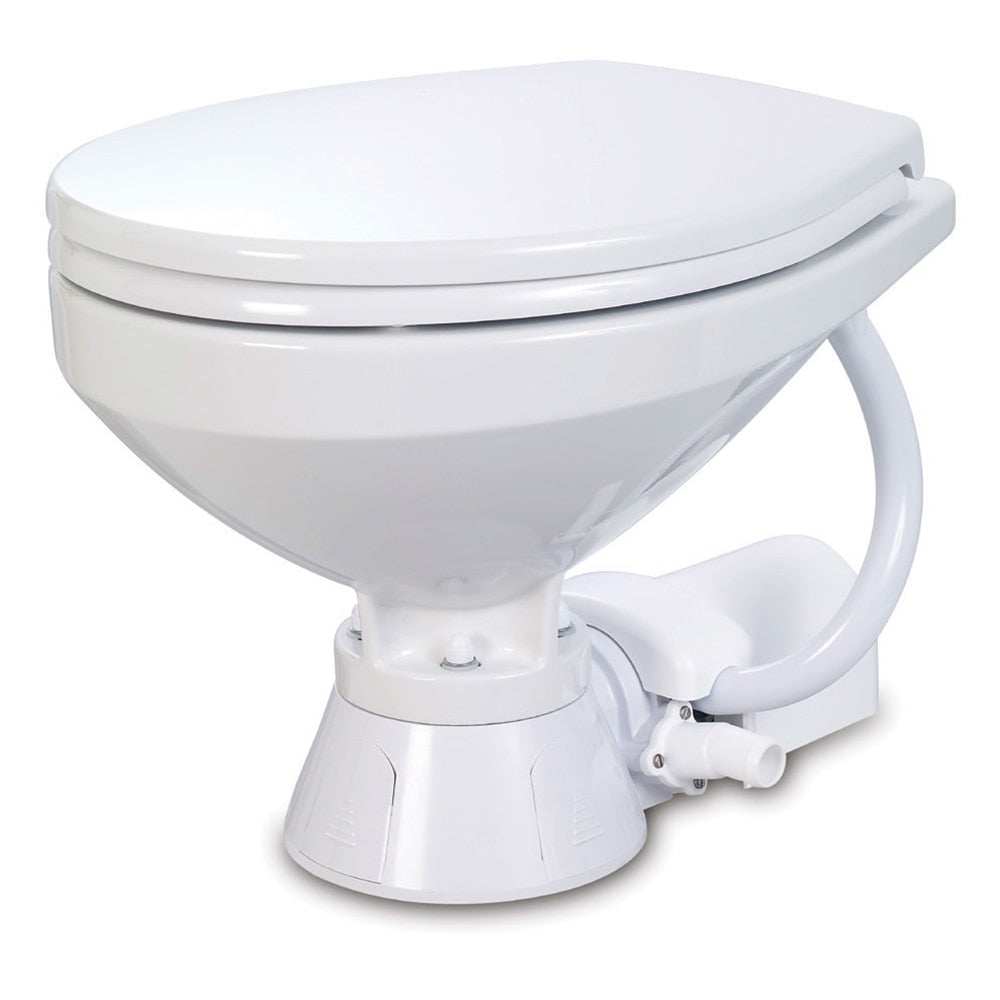

Jabsco Electric Marine Toilet – Regular Bowl with Soft Close Lid – 24V – 37010-4194
The Jabsco Electric Marine Toilet (37010-4194) delivers reliable, hygienic, and efficient onboard sanitation for vessels equipped with 24-volt electrical systems. Featuring a regular-size bowl for familiar comfort and a soft close lid, this electric marine toilet combines residential-style convenience with rugged marine-grade durability.
Designed for both recreational and light commercial marine applications, this model provides powerful flushing performance while minimizing water usage and maintenance requirements.
Comfortable Regular Bowl with Soft Close Lid
The regular bowl design offers a familiar seating height and comfort similar to a household toilet, making it ideal for longer trips and frequent use. The soft close lid and seat reduce noise, prevent slamming, and enhance onboard comfort—especially important in shared cabins and overnight cruising.
Reliable 24V Electric Flush System
Operating on 24V DC power, this toilet is well-suited for larger yachts, commercial vessels, and workboats with 24V electrical systems. The electric motor provides consistent flushing power for dependable waste evacuation and smooth operation.
Efficient Water Use & Powerful Maceration
Jabsco’s proven electric flushing system delivers effective maceration and waste transfer using controlled water flow. This helps maintain clean plumbing lines while reducing strain on holding tanks and minimizing odors.
Marine-Grade Construction
Built with corrosion-resistant materials and durable internal components, the 37010-4194 is engineered to withstand harsh marine environments, including humidity, vibration, and saltwater exposure. Jabsco’s reputation for quality ensures long-term reliability and serviceability.
Easy Integration & Serviceability
This electric marine toilet is designed for straightforward installation and compatibility with standard marine plumbing systems. Genuine Jabsco replacement parts are widely available, making maintenance and repairs simple over the life of the unit.
In the Box: 37010-4194
-
(1) Regular Size White Porcelain Bowl: Vitreous china for durability and hygiene.
-
(1) 24V Motor & Macerator Assembly: Pre-installed at the base of the bowl.
-
(1) Soft Close Seat and Lid: Featuring slow-drop hinges.
-
(1) Heavy-Duty Push Button Switch: For bulkhead or console mounting.
-
(1) 1" to 1.5" Discharge Adapter: To match your existing sanitation hose.
-
(1) Installation Manual: Includes wiring diagrams and a mounting template.
Key Features & Benefits
1. Household Comfort ("Regular Bowl")
The Regular Bowl dimensions are much closer to a standard residential toilet than the "Compact" versions. For owners of larger vessels or liveaboards, this provides a significant upgrade in ergonomics and comfort.
2. Quiet-Closing Lid
Standard marine toilet seats are notorious for slamming loudly when the boat moves. The Soft Close hinges ensure the lid lowers gently every time, protecting the porcelain from impact and keeping the cabin quiet at night.
3. Dual-Function Pump
The integrated pump system performs two tasks simultaneously:
-
Intake: A flexible impeller pulls in sea, river, or lake water for flushing.
-
Discharge: A stainless steel centrifugal macerator grinds waste and pumps it out to the holding tank or overboard (where legal).
4. 24V System Efficiency
On a 24V system, this toilet draws only 8 Amps (compared to 16 Amps for 12V models). This allows for the use of thinner, more flexible wiring and places less of a "spike" load on your battery banks when flushed.
Technical Specifications
| Feature | Details |
| Model Number | 37010-4194 |
| Voltage | 24V DC |
| Bowl Style | Regular (Large) |
| Lid Type | Soft Close |
| Amp Draw | 8.0 Amps |
| Fuse Size | 15.0 Amp |
| Inlet Port | 3/4" (19mm) Hose Barb |
| Discharge Port | 1" (25mm) or 1.5" (38mm) |
| Weight | Approx. 38 lbs (17.2 kg) |
Pro-Tip for Installation:
"If you are installing this toilet below the waterline, it is critically important to install vented loops on both the intake and discharge hoses. This prevents a siphon from forming, which could otherwise allow water to continuously flow into the bowl and potentially flood your vessel while you're away."
Ideal Applications
-
Cruising sailboats and powerboats
-
Motor yachts and sport yachts
-
Commercial vessels and workboats
-
Charter boats with 24V systems
-
Replacement or upgrade for existing electric heads
Why Choose Jabsco Electric Marine Toilets
Jabsco is a global leader in marine sanitation systems, trusted for reliability, ease of use, and service support. The 37010-4194 Electric Marine Toilet delivers the comfort boaters want with the durability professionals require.
Upgrade your onboard sanitation with the Jabsco Electric Marine Toilet – Regular Bowl with Soft Close Lid – 24V – 37010-4194, a dependable and comfortable solution for modern marine environments.
