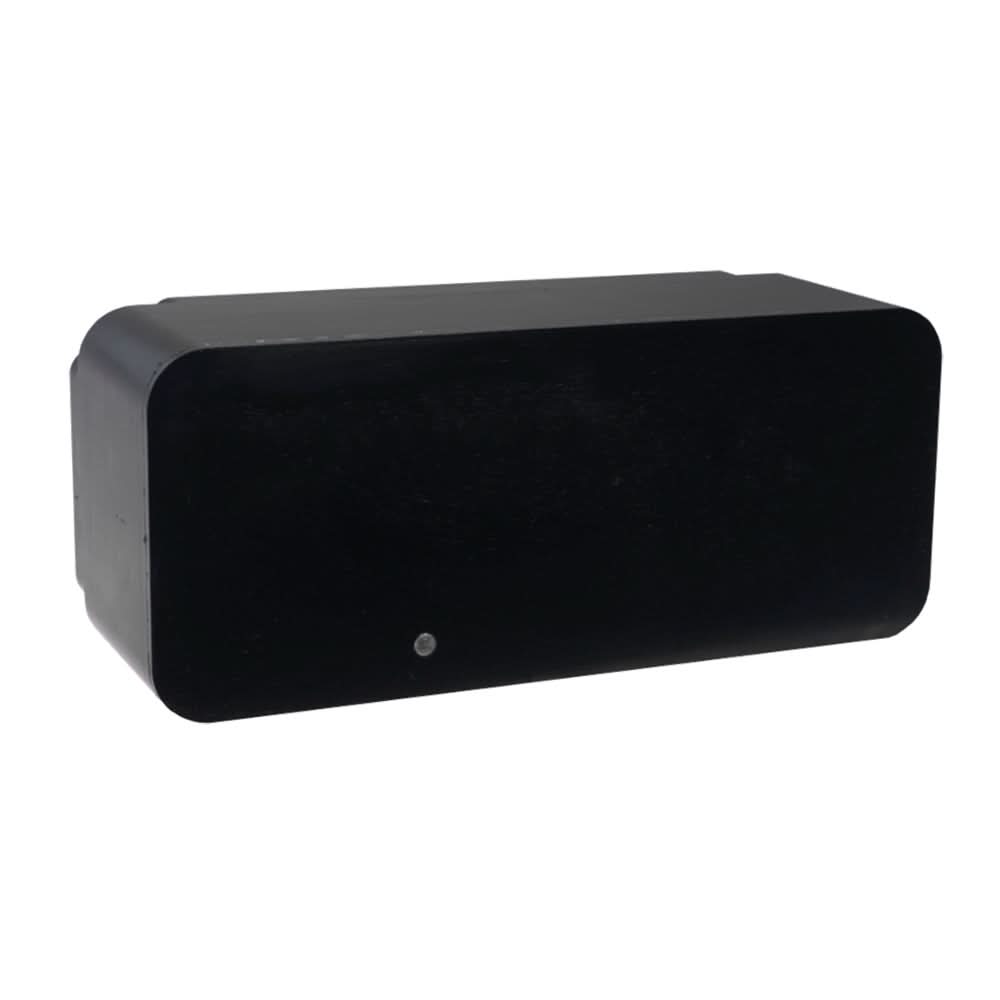

Airmar PM111 LHW CHIRP 2kW Wide-Beam Chirp-Ready Pocket/Keel Mount - No Connector - PM111C-LHW

Airmar PM111 LHW CHIRP 2kW Wide-Beam Chirp-Ready Pocket/Keel Mount - No Connector - PM111C-LHW

PM111 LHW CHIRP 2kW Wide-Beam Chirp-Ready Pocket/Keel Mount - No Connector

Get more coverage under your boat with Airmar’s unique wide-beam, high-frequency, Chirp-ready transducer. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high-frequency band results in superior resolution. The constantly wide beam provides twice the coverage and excellent fish arches on the display compared to most high-frequency, narrow-beam transducer options.

The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essentially down to 152 m (500').

The low-frequency band and 2 kW of power also support great deep-water performance. Get the best of both worlds with Airmar’s dual-frequency, Chirp-ready transducer with wide-beam coverage.

Features:

• The depth and fast-response water-temperature sensor
• 2 kW of power for great deep-water performance from the low frequency
• 2 kW low frequency: 38 to 75 kHz
  • 19° to 10° port-starboard beamwidth
  • 10° to 5° fore-aft beamwidth
  • Maximum depth of 1,829 m (6,000')
• 1 kW high frequency: 150 to 250 kHz
  • 25° constant beamwidth
  • Maximum depth of 152 m (500')
• 137 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50, 68, and 200 kHz plus everything else in the bandwidth
• High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation
• High wide beamwidth yields more coverage for detecting fish in the upper-water column
• Urethane housing designed for custom mounting in a cavity
• Also available in an external (R109LHW) mount
• Exclusive Xducer ID® technology

Specifications:

• Weight: 13.6 kg (30 lb.)
• Recommended Boat Length: 12 m (40') and above
• Hull Material: Solid fiberglass only
• Hull Deadrise: Accommodates any deadrise angle based on custom cavity construction
• Acoustic Window: Epoxy/urethane
• Transducer Element: 16 internal broadband ceramic assemblies

Product : AIRMAR PM111 LHW CHIRP 2KW NO CONNECTOR
Manufacturer : Airmar
Manufacturer Part No : PM111C-LHW
Product : AIRMAR PM111 LHW CHIRP 2KW NO CONNECTOR
